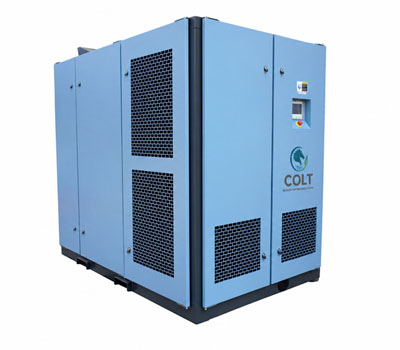

Screw Air Compressor – Two Stage
Colt Two-Stage Screw Air Compressors, available in capacities from 30 to 300 HP are engineered with advanced two-stage compression technology to deliver superior efficiency, higher reliability, and significant energy savings for demanding industrial applications.
Why Colt Two-Stage Screw Air Compressor?
PM
Super premium efficiency PM Motor
Vibration-free, quieter operation
Designed for hot Indian climate
Lowest oil carry-over
Direct driven with low RPM
Advanced PLC for easy operation
35% Energy Saving
Lowest life cycle cost
Product Specifications
High Efficiency Combi-Cooler
• Oversized Coolers designed for High Ambient Temperatures upto 48° C
• Bigger and Separate Cooler for Oil and Air

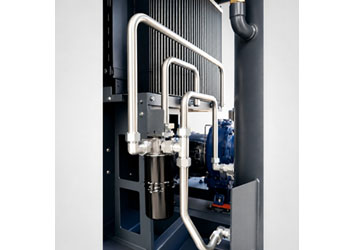

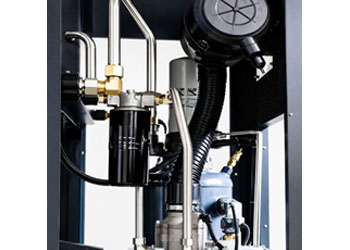

Complete Stainless-Steel Piping
• No Rubber Hoses
• Less maintenance cost

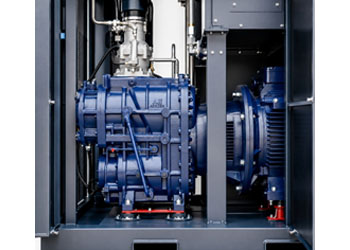

Low Speed-Direct Drive Screw Element
• Low maintenance cost
• Increased life of bearing

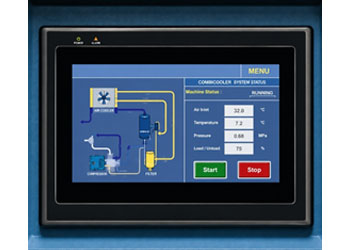

Touch Screen Controller
• Large Display Size
• Additional parameters such as amperes/voltage and power displayed for main motor and fan motor
• Consumable lifetime/service due indicator

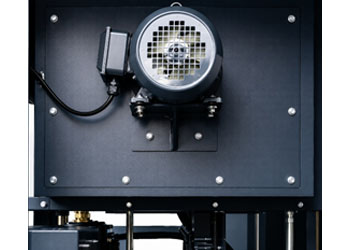

Radial Fan
• High Efficiency Radial Fan
• VFD Controlled (40 HP Onwards)
• Fan Start/Stops on the basis of temperature

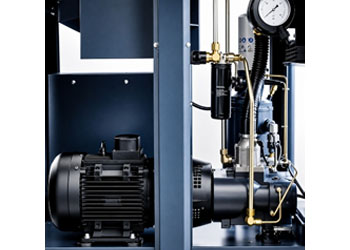

HIGH EFFICIENCY MOTOR
• Permanent magnet high-efficiency motor

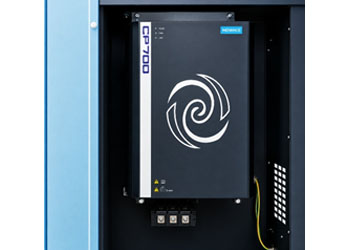

Energy Efficient Drive
• Specially designed for compressor application
• Safety protections like Single Phasing, Motor Overload, Current imbalance, over voltage, low voltage, High Pressure Tripping
High Efficiency Oil Separator
• Less Oil Carryover
Two-Stage Screw Air Compressor Models and Capacities
Free air delivery (FAD) for every Colt two-stage VFD screw air compressor, taken from our current two-stage brochure. Two-stage compression delivers noticeably more air per kW than a single-stage machine of the same motor size. Compare the CS2 40 VFD at 228.4 CFM with the single-stage CS 40 VFD at 199.2 CFM, both at 8 bar.
| Model | Motor (HP / kW) | FAD @ 8 bar (CFM) | FAD @ 10 bar (CFM) | FAD @ 12 bar (CFM) | Noise dB(A) | Size L×W×H (mm) | Air outlet (inch) |
|---|---|---|---|---|---|---|---|
| CS2 30 VFD | 30 / 22 | 156.3 | 133.4 | 121.9 | 72 | 1600×900×1500 | 1½ |
| CS2 40 VFD | 40 / 30 | 228.4 | 203.5 | 185.4 | 72 | 1700×1100×1600 | 1½ |
| CS2 50 VFD | 50 / 37 | 271.2 | 240.1 | 205.8 | 72 | 1700×1100×1600 | 1½ |
| CS2 60 VFD | 60 / 45 | 369.8 | 297.3 | 247.8 | 72 | 2100×1400×1850 | 2 |
| CS2 75 VFD | 75 / 55 | 476.5 | 365.9 | 327.9 | 75 | 2100×1400×1850 | 2 |
| CS2 100 VFD | 100 / 75 | 628.1 | 476.5 | 426.7 | 75 | 2300×1450×1950 | 2 |
| CS2 120 VFD | 120 / 90 | 736.2 | 644.2 | 545.1 | 75 | 2900×2200×1960 | 3 |
| CS2 150 VFD | 150 / 110 | 895.9 | 751.0 | 670.4 | 75 | 2900×2200×1960 | 3 |
| CS2 180 VFD | 180 / 132 | 1067.4 | 895.8 | 754.8 | 82 | 2900×2200×1960 | 3 |
| CS2 200 VFD | 200 / 160 | 1280.8 | 1143.7 | 907.3 | 82 | 2900×2200×1960 | 3 |
Air receiver we recommend: 500 litres up to 30 HP, 1,000 litres from 40 to 100 HP, and 2,000 litres for 120 HP and above.
Looking for a smaller or fixed-speed machine? See the single-stage range (10 to 180 HP), or send us your air demand for a sizing recommendation.

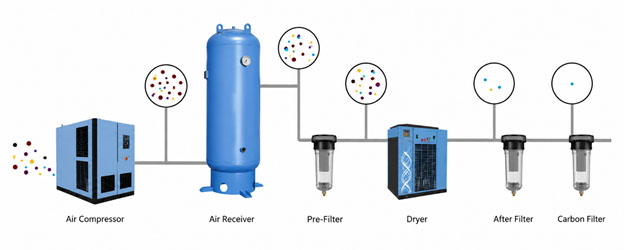

Typical Compressed Air Supply System
